Titan's Fabricated Basket Strainers provide versatile design options to fit the needs of your application. See the standard models and available options below.
Bolted Cover Designs
Model Number
FB 21
FB 31
FB 41
FB 51
ANSI Class
150
300
600
900
Quick Opening Cover Designs
Model Number
FB 24
FB 34
FB 44
ANSI Class
150
300
600
Download Catalog Sheets:
Related Links:
______________________________________________________________________________________________________________________
_________________________________________________________________________________________
Materials
Although Titan's standard Fabricated Basket Strainers are Carbon Steel, Titan has a full range of material selections. In addition, Titan Flow Control can add special coatings and linings, including steam jacketing, when required.
End Connections
Typical end connections for Titan's Fabricated Strainers are Flanged and Butt Weld connections. However, we would be happy to work with you on additional options.
FRP Basket Strainers, as shown above, provide a lightweight, cost-effective solution that is corrosion and erosion resistant.
Additional Features
Titan can furnish the following features on most Fabricated Basket Strainer Designs:
Gauge Taps
Bottom Drains
Multi-Basket Designs
Support Legs
Air Vents
Pressure Differential Gauges
Straining Elements (Baskets)
Titan Flow Control has the experience to design and build the straining element you need! Specialty perforations and meshes, dutchweave meshes, magnetic screen assemblies, drilled or wedgewire screens, pleated straining elements, multi-basket designs, etc., can be provided for your fabricated strainer.
If you need assistance in determining the best straining element for your fabricated strainer, see Titan FCI's Screen and Basket Selection or contact Titan Flow Control.
Cover Designs and Flow Options

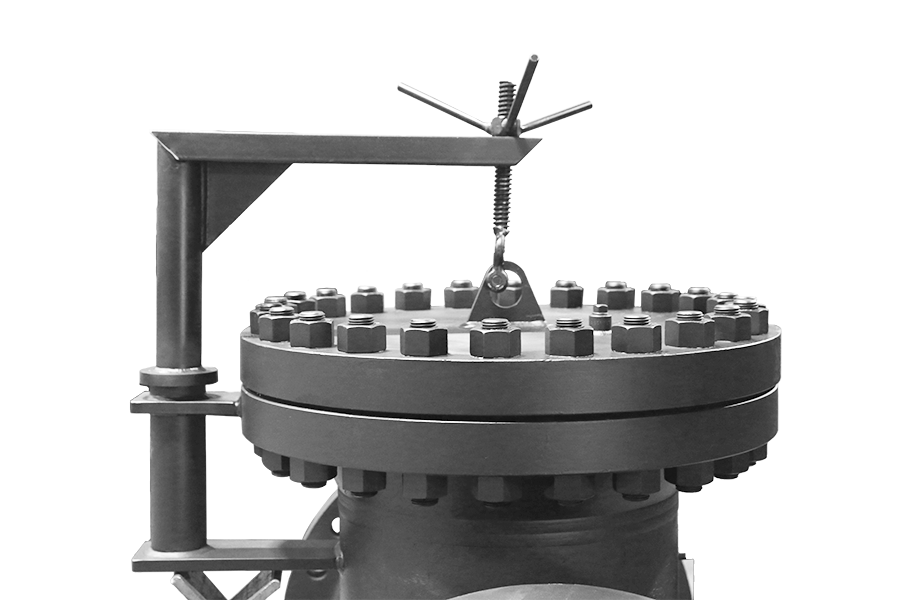

Special cover designs are available, like the Davit Assembly shown to the left. Various flow options including right angle, offset, and horizontal-vertical are also offered. For more information, visit Titan's Cover and Flow Options for Fabricated Products.
Dimensions and Specifications
Titan offers standard dimensions for its Fabricated Basket Strainers, as given
on the catalog sheet. Please note, however, that Titan's fabricated products are made to each customer's unique specifications. Therefore, dimensions, materials, images, and all other product details referenced in the literature and on this website are general in nature. For exact product specifications, consult the Titan FCI factory and request certified engineering documents.
_____________________________________________________________________________________________________________________
_________________________________________________________________________________________
Fabricated Duplex strainers are required when an off-the-shelf solution will not meet your exact piping requirements. All of our Fabricated Strainers are made right here in the USA, at our state-of-the-art facility in the southeastern part of North Carolina.
2" - 24" | Fabricated In-Line Duplex Strainers
Bolted
FDI 21
FDI 31
FDI 41
FDI 51
Quick Open
FDI 24
FDI 34
FDI 44
FDI 54
ANSI Class
150
300
600
900
2" - 24" | Fabricated Offset Duplex Strainers
Bolted
FDO 21
FDO 31
FDO 41
FDO 51
Quick Open
FDO 24
FDO 34
FDO 44
FDO 54
ANSI Class
150
300
600
900
_____________________________________________________________________________________________________________________
FDI | Fabricated In-Line Manifold Style 1
FDI | Fabricated In-Line Manifold Style 3
FDI | Fabricated In-Line Manifold Style 2
FDI | Fabricated In-Line Box Style 1

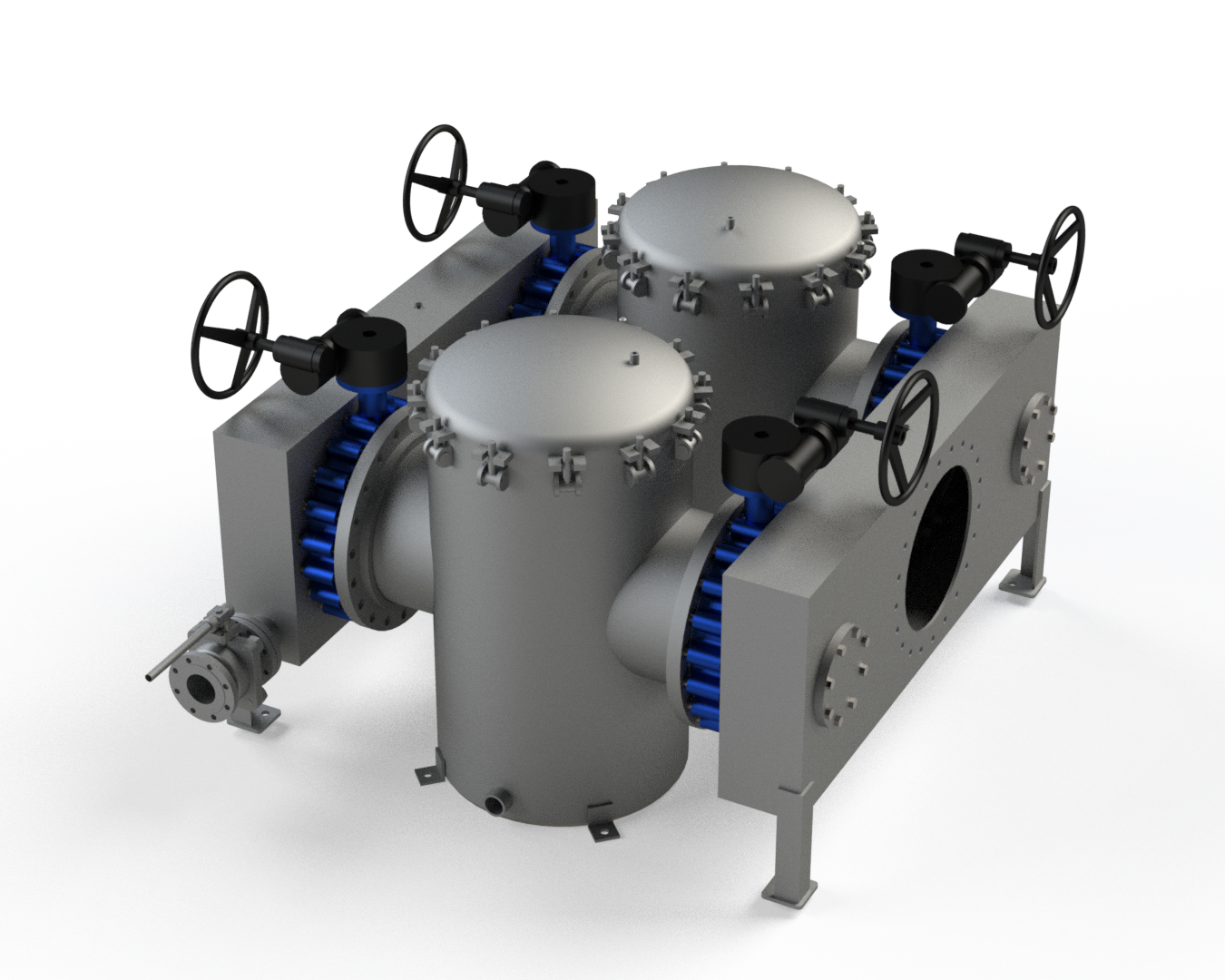

Manifold Duplex Options
FDI 20 Series - 150 Class
FDI 30 Series - 300 Class
FDI 40 Series - 600 Class
Box Style Duplex Options
FDI 20 Series - 150 Class
- Replace Cast Designs no Longer Available
- Limited Space Duplex Strainer
- Valve operators Customized for easy access
- Box Headers for smaller Footprint.
Configurations
Ends
Flanged
Butt weld
Cover
Quick Open
Bolted
_____________________________________________________________________________________________________________________
_________________________________________________________________________________________
Materials
Although Titan's standard Fabricated Duplex Strainers are Carbon Steel, Titan has a full range of material selections. In addition, Titan Flow Control can add special coatings and linings, including steam jacketing, when required.
End Connections
Typical end connections for Titan's Fabricated Duplex Strainers are Flanged and Butt Weld connections. However, we would be happy to work with you on additional options.
FRP Duplex Strainers, as shown above, provide a lightweight, cost-effective solution that is corrosion and erosion resistant.
Additional Features
Titan can furnish the following features on most Fabricated Duplex Strainer Designs:
Gauge Taps
Bottom Drains
Multi-Basket Designs
Support Legs
Air Vents
Pressure Differential Gauges
Straining Elements (Baskets)
Titan Flow Control has the experience to design and build the straining element you need! Specialty perforations and meshes, dutchweave meshes, magnetic screen assemblies, wedge wire screens, multi-basket designs, etc., can be provided for your fabricated strainer.
If you need assistance in determining the best straining element for your fabricated Duplex strainer, see Titan FCI's Screen and Basket Selection or contact Titan Flow Control.
Cover Designs and Flow Options
Special cover designs are available, like the Davit Assembly shown to the left. Various flow options including right angle, offset, and horizontal-vertical are also offered. For more information, visit Titan's Cover and Flow Options for Fabricated Products.
Dimensions and Specifications
Titan offers standard dimensions for its Fabricated Duplex Strainers, as given on the catalog sheet. Please note, however, that Titan's fabricated products are made to each customer's unique specifications.
Therefore, dimensions, materials, images, and all other product details referenced in the literature and on this website are general in nature. For exact product specifications, consult the Titan FCI factory and request certified engineering documents.
_____________________________________________________________________________________________________________________
_________________________________________________________________________________________

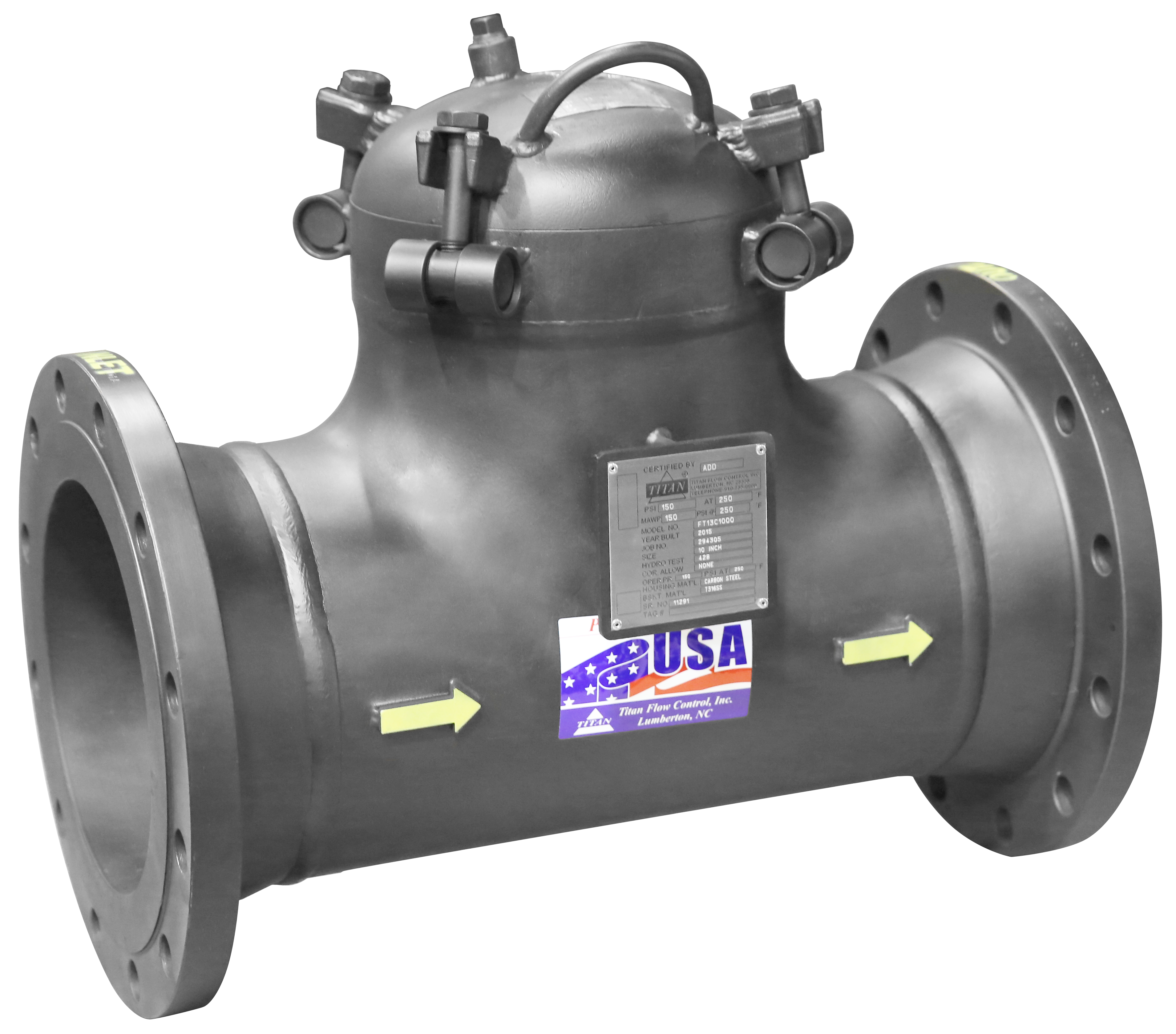

Titan's Fabricated Tee Strainers provide versatile design options to fit the needs of your application. See the standard models and available options below.
Bolted Cover Designs
Model Number
FT 21
FT 31
FT 20
FT 30
FT 40
FT 50
ANSI Class
150
300
150
300
600
900
End connections
Flanged
Flanged
Butt Weld
Butt Weld
Butt Weld
Butt Weld
Quick Opening Cover Designs
Model Number
FT 24
FT 34
FT 23
FT 33
ANSI Class
150
300
150
300
End connections
Flanged
Flanged
Butt Weld
Butt Weld
______________________________________________________________________________________________________________________
_________________________________________________________________________________________
Materials
Titan FCI has a full range of material selections available. In addition, Titan Flow Control can add special coatings and linings, including steam jacketing, when required.
End Connections
Typical end connections for Titan's Fabricated Strainers are Flanged and Butt Weld connections. However, we would be happy to work with you on additional options.
Additional Features
Titan can furnish the following features on most Fabricated Tee Strainer Designs:
Gauge Taps
Air Vents
Pressure Differential Gauges
And more -- Ask Titan!
Straining Elements (Tee Baskets)
Titan Flow Control has the experience to design and build the straining element you need! Specialty perforations and meshes, dutchweave meshes, magnetic screen assemblies, drilled or wedgewire screens, etc., can be provided for your fabricated strainer.
If you need assistance in determining the best straining element for your fabricated strainer, see Titan FCI's Screen and Basket Selection or contact Titan Flow Control.
Cover Designs and Flow Options
Special cover designs are available, For more information, visit Titan's Cover and Flow Options for Fabricated Products.
Dimensions and Specifications
Titan offers standard dimensions for its Fabricated Tee Strainers, as given on the catalog sheet. Please note, however, that Titan's fabricated products are made to each customer's unique specifications. Therefore, dimensions, materials, images, and all other product details referenced in the literature and on this website are general in nature. For exact product specifications, consult the Titan FCI factory and request certified engineering documents.
_____________________________________________________________________________________________________________________
_________________________________________________________________________________________
Temporary Strainers are used for start-up of new or revamped piping systems, providing inexpensive protection for costly valves, pumps, meters, and other mechanical equipment.
Cone Type
Model Number
PS 15
PS 15
PS 15
PS 15
PS 15
ANSI Class
150
300
600
900
1500
Basket Type
Model Number
PS 16
PS 16
PS 16
PS 16
PS 16
ANSI Class
150
300
600
900
1500
Plate Type
Model Number
PS 17
PS 17
PS 17
PS 17
PS 17
ANSI Class
150
300
600
900
1500
Call Today - 910-735-0000
Temporary Strainer Sheet:
Plate Strainer Sheet:
______________________________________________________________________________________________________________________
_________________________________________________________________________________________
Materials
Although Titan's standard Temporary Strainers are Stainless and Carbon Steel, Titan has a full range of material selections.
Perforations and Meshes
Titan Flow Control has the experience to design and build the straining element you need! Specialty perforations and meshes, dutchweave meshes, drilled or wedgewire screens, pleated straining elements, etc., can be provided for your fabricated strainer.
If you need assistance in determining the best perforation or mesh for your fabricated strainer, see Titan FCI's Screen and Basket Selection or contact Titan Flow Control.
These titanium strainers are an example of one of the many different materials available for Titan's Temporary Strainers.
Dimensions and Specifications
Titan offers standard dimensions for its Temporary Strainers, as given on the catalog sheets for Basket and Cone Type Temporary Strainers and for Plate Type Temporary Strainers. Please note, however, that Titan's fabricated products are made to each customer's unique specifications. Therefore, dimensions, materials, images, and all other product details referenced in the literature and on this website are general in nature. For exact product specifications, consult the Titan FCI factory and request certified engineering documents.
For non-standard dimensions, blank design specification sheets are available to help ensure that your temporary strainer is made to your requirements.
_____________________________________________________________________________________________________________________
_________________________________________________________________________________________
Titan's Spectacle Flanges, Single Blinds, and Ring Spacers are crucial pipeline accessories when a section of the pipeline may need to be isolated from the rest.
Single Blinds or Blanks are positive shut-off devices that prevent flow through a pipeline. Ring spacers or Open Blinds are used to fill the space of Single Blinds when they are removed from the piping system. With space, weight, and other pipeline requirements permitting, it may be more convenient and cost-effective in specific situations to use a Spectacle Flange, which is a combination of the two that can be rotated to function as Single Blind or a Ring Spacer.
Spectacle Flange
Model Number
PB 18
PB 18
PB 18
ANSI Class
150
300
600
Single Blind
Model Number
PB 19
PB 19
PB 19
ANSI Class
150
300
600
Ring Spacer
Model Number
PB 20
PB 20
PB 20
ANSI Class
150
300
600
*All pictures shown are for illustrative purposes only. Actual product may vary due to product enhancement.
*Handle style may vary, consult factory for details.
______________________________________________________________________________________________________________________
Materials
Although Titan's standard Spectacle Flanges and Blinds are Stainless and Carbon Steel, Titan has a full range of material selections.
Dimensions and Specifications
Titan offers standard dimensions for its Spectacle Flanges and Blinds, as given on the catalog sheet.
Please note, however, that Titan's fabricated products are made to each customer's unique specifications. Therefore, dimensions, materials, images, and all other product details referenced in the literature and on this website are general in nature. For exact product specifications, consult the Titan FCI factory and request certified engineering documents.
Call Today - 910-735-0000
Download Catalog Sheet:
Related Links:
_____________________________________________________________________________________________________________________
_________________________________________________________________________________________
Titan Flow Control, Inc. has the capability to create identification tags for all your marking and labeling needs.
Identify Titan Products
Ask for Titan to add tags to your next order! Tags can be marked with product numbers, dates, batch numbers, logos, etc. Before your products are shipped to you, Titan will attach the tags so you will be able to identify them easily.
Simplify, Organize, Track
Titan can mark small parts, tools, keys, and more so you can stay organized. The tags can be used for tracking equipment and inventory, preventing theft, asset management, and assigning serial numbers.
Make an Impression
Titan's high quality tags look professional. They are available in a wide variety of sizes, shapes, and materials. Titan FCI can even add your company's logo and information! (Graphic design charges may apply.)
Fabrication Catalog:
_____________________________________________________________________________________________________________________
_________________________________________________________________________________________
Materials
Titan's tags are typically stainless steel. However, Titan is capable of marking additional materials, such as various treated and untreated metals, plastic, wood, and more!
Dimensions and Specifications
_________________________________________________________________________________________
Titan offers standard dimensions for its Identification Tags, as given on the catalog sheet. Please note, however, that Titan's fabricated products are made to each customer's unique specifications. Therefore, dimensions, materials, images, and all other product details referenced in the literature and on this website are general in nature. For exact product specifications, consult the Titan FCI factory.
_____________________________________________________________________________________________________________________
_________________________________________________________________________________________
Titan Flow Control, Inc. cover options are designed for various strainer types and sizes so that the straining element is accessible for cleaning and maintenance, an important concern especially with large strainers.
Hinged Covers
Titan's Hinged Cover design is a quick opening cover that is secured with bolts around the outside of the cover. Rotating on its hinge, this cover is easiest to maneuver when it is on a small strainer, in a vertical position, or on the bottom of the strainer.
Davit Assemblies
Davit Cover Assemblies mechanically aid in removing and replacing covers that would normally be too large for one operator to adjust unaccompanied. Lift davits also ensure that the cover is properly positioned and aligned with the strainer.
Bolted Slide Hinged Cover
With Titan's Bolted Slide Hinge Cover, the cover can be slid slightly away from the strainer so it has clearance to rotate. Although these covers in small sizes may be removed by a single operator, a lifting eye is available to aid in the removal of larger covers.
These two Titan FCI fabricated basket strainers show examples of different cover designs. The left basket strainer has a hinged cover; the right, a davit.
Fabrication Catalog:
Related Links:
_____________________________________________________________________________________________________________________
_________________________________________________________________________________________
Titan Flow Control offers various options for the placement of inlet and outlet nozzles in order to accommodate each unique piping system.
Right Angle Flow
Right Angle Flow Fabricated Strainers are designed for pipelines with a 90° corner. Having a fabricated strainer with a right angle flow eliminates the need for a pipeline elbow.
Offset Flow
Offset Flow Fabricated Strainers can align with pipes at different levels.
Horizontal-Vertical Flow
Horizontal-Vertical Flow Fabricated Strainers accommodate piping system in which the flow changes from horizontal to vertical.
_____________________________________________________________________________________________________________________
_________________________________________________________________________________________
A Restriction Orifice Plate is a device used to restrict flow. It reduces flow and pressure from the upstream side to the downstream side. This is beneficial in order to reduce noise and protect downstream equipment.
Multi-stage Restriction Orifice Plate assembly are also available. Please contact Titan directly for more information regarding Multi-stage Assembly.
Restriction Orifice Plate Models
Model Number
RP 21
RP 21
Material
CS
SS
_____________________________________________________________________________________________________________________
Orifice Bores
The bore diameter and additional bore requirements should be specified when ordering. Because bore diameter and the following bore options are application specific, consult a Titan engineer for more information.
Below are some of Titan FCI's common bore options:
Concentric or Eccentric Placement
Full or Segmented Openings
Radiused Edges
Materials
Although Titan's standard orifice plates are Stainless and Carbon Steel, Titan has a full range of material selections.
Dimensions and Specifications
Titan offers standard dimensions for its Orifice Plate, as given on the catalog sheet. Please note, however, that Titan's fabricated products are made to each customer's unique specifications. Therefore, dimensions, materials, images, and all other product details referenced in the literature and on this website are general in nature. For exact product specifications, consult the Titan FCI factory and request certified engineering documents.
Fabrication Catalog:
Related Links:
