Name: YS58N-DI
SKU: YS58N-DI
Availability: InStock

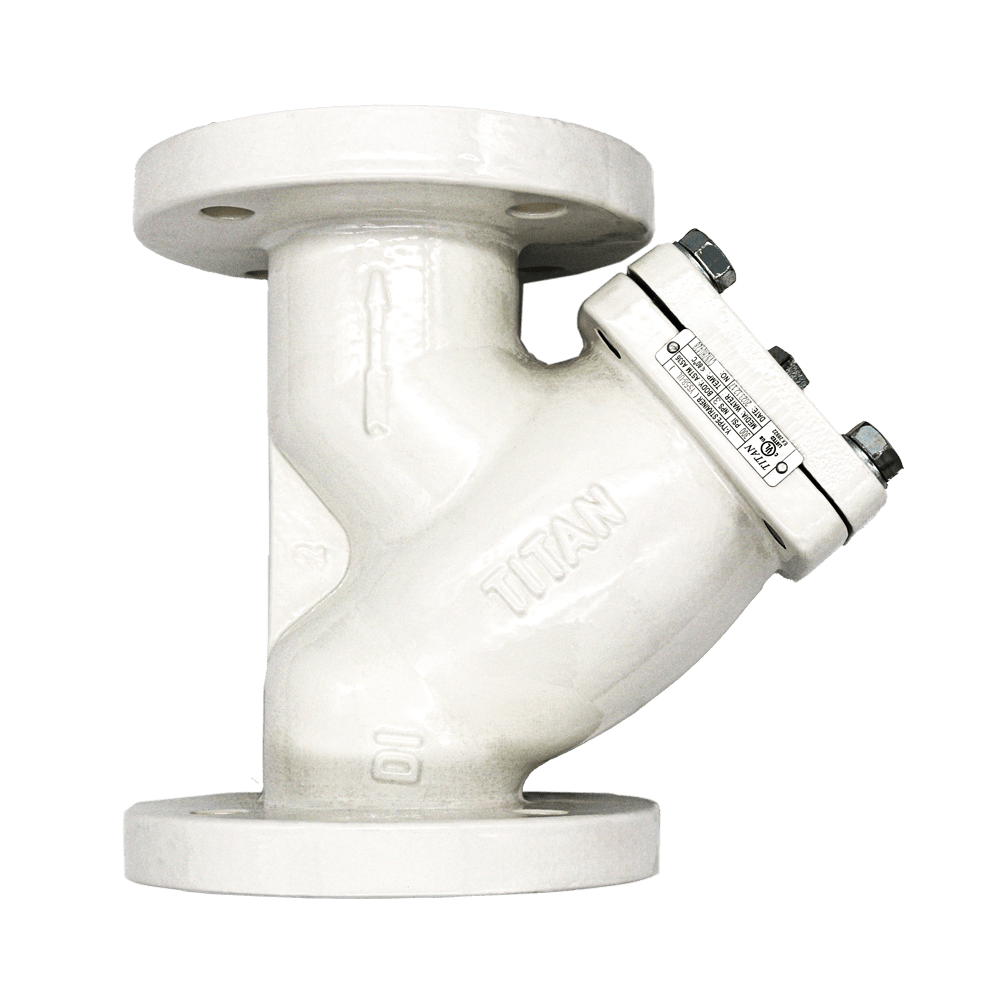

YS58N-DI

Y Strainer Specification

Body Material: Ductile Iron (A395)
End Connection: Flanged - FF Ends
ASME Rating: Class 150
Size Range: 2 in ~ 12 in

Pressure Rating

Ductile Iron - ASTM A536 - Class 150

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

General Information

Product Features

NSF Certifications
Epoxy Coating
Flanged End Design
Large Straining Capacity
Rugged Construction
Self-Cleaning Capability

Product Indentification

Product Code

Replacement Straining Element

Replacement Gasket

Rebuild Kit

Note: 'XXXX' designates the size of the part

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS58N-DI	YS58N-DI	2	YS58ND0200	Ductile Iron	Flanged	Class 125	295.00	325.00
YS58N-DI	YS58N-DI	2	YS58ND0250	Ductile Iron	Flanged	Class 125	384.00	423.00
YS58N-DI	YS58N-DI	3	YS58ND0300	Ductile Iron	Flanged	Class 125	452.00	497.00
YS58N-DI	YS58N-DI	4	YS58ND0400	Ductile Iron	Flanged	Class 125	739.00	813.00
YS58N-DI	YS58N-DI	5	YS58ND0500	Ductile Iron	Flanged	Class 125	1,147.00	1,261.00
YS58N-DI	YS58N-DI	6	YS58ND0600	Ductile Iron	Flanged	Class 125	1,529.00	1,680.00
YS58N-DI	YS58N-DI	8	YS58ND0800	Ductile Iron	Flanged	Class 125	2,582.00	2,836.00
YS58N-DI	YS58N-DI	10	YS58ND1000	Ductile Iron	Flanged	Class 125	4,510.00	4,953.00
YS58N-DI	YS58N-DI	12	YS58ND1200	Ductile Iron	Flanged	Class 125	6,445.00	7,078.00
YS58N-DI	YS58N-DI	14	YS58ND1400	Ductile Iron	Flanged	Class 125	11,893.00	13,059.00
YS58N-DI	YS58N-DI	16	YS58ND1600	Ductile Iron	Flanged	Class 125	16,835.00	18,486.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."
