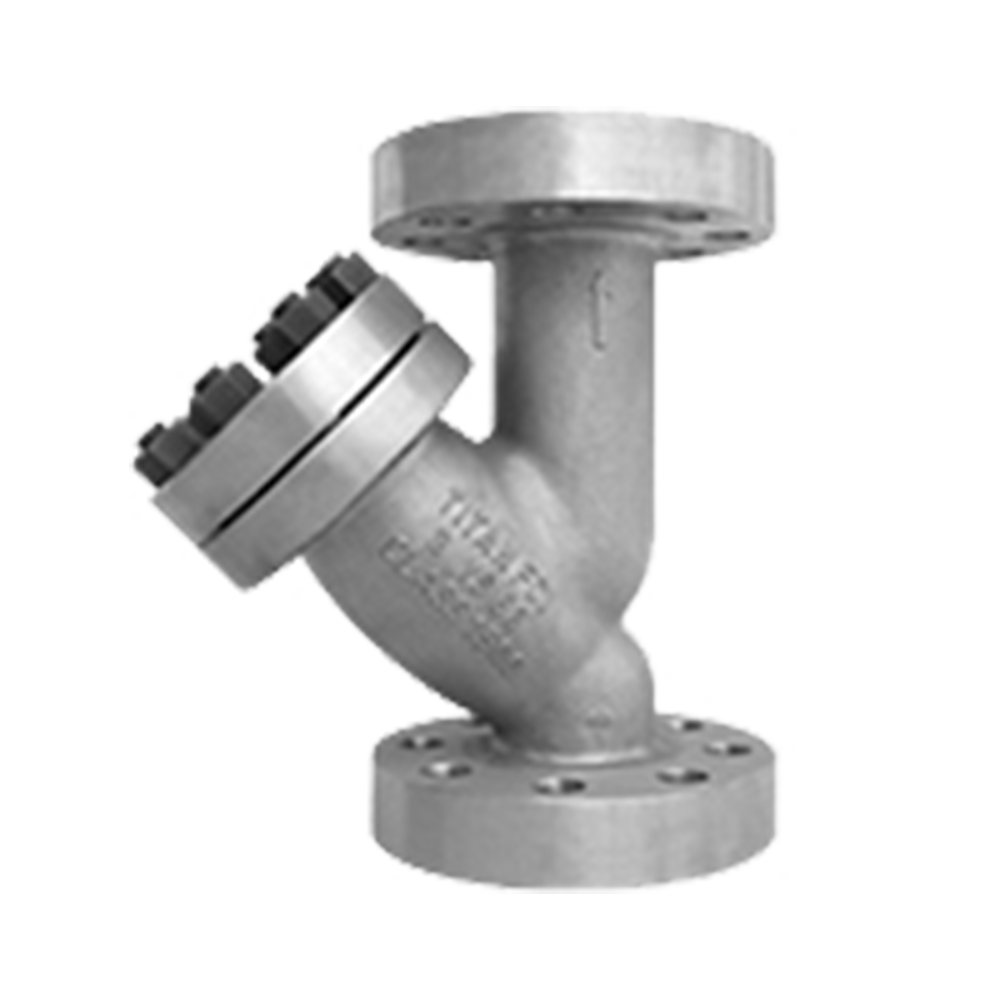

YS68-SS

Y Strainer Specification

Body Material: Stainless Steel (A351 Gr. CF8M)
End Connection: Flanged - RF Ends
ASME Rating: Class 1500
Size Range: 2 in ~ 8 in

Pressure Rating

Stainless Steel - ASTM A351 Gr. CF8M - Class 1500

Documents

General Information

Pressure-Temperature Chart

Pressure Drop Calculator

List Price View

General Information

Product Features

Rugged - High Quality Design
Large Straining Capacity
Precision Machined Seats
Encapsulated 'CG' Style Gasket
Self Cleaning Capability
Epoxy Painted

Product Indentification

Product Code

Replacement Straining Element

Replacement Gasket

Rebuild Kit

Note: 'XXXX' designates the size of the part

Pressure-Temperature Chart

Pressure Drop Calculator

Step 1: Select Strainer Size

Strainer Model (Read Only)

Step 2: Enter Flow Rate

gpm

Estimated Flow Coefficient (Read Only)

Step 3: Select Screen Type

Estimated Correction Factor (Read Only)

Result: Estimated Pressure Drop (Read Only)

psi

Notice - Acceptable Pressure Loss

Caution - Excessive Pressure Loss

Danger - Critical Pressure Loss

These values are theoretical and are provided for estimation purposes only.
Actual results will vary depending on application conditions.

List Price View

Series	Model	Size	Part Code	Body Material	End Connections	ASME Class	List Standard	List Mesh
YS68-SS	YS68-SS	2	YS68S0200	Stainless Steel	Flanged	Class 1500	15,013.00	16,301.00
YS68-SS	YS68-SS	2	YS68S0250	Stainless Steel	Flanged	Class 1500	22,969.00	25,139.00
YS68-SS	YS68-SS	3	YS68S0300	Stainless Steel	Flanged	Class 1500	28,236.00	30,657.00
YS68-SS	YS68-SS	4	YS68S0400	Stainless Steel	Flanged	Class 1500	33,736.00	36,769.00
YS68-SS	YS68-SS	6	YS68S0600	Stainless Steel	Flanged	Class 1500	94,228.00	102,299.00
		Size	Part Code	Body Material	End Connections

Pricing applies exclusively to Stocked Mesh/Perforation Sizes of material Type 304 SS .
Stocked Mesh Lined Sizes include: "10-20-30-40-60-80-100."
Stocked Perforation Sizes include: "1/32-3/64-1/16-1/8-5/32-1/4."
